TC2-Grommet thermocouple

shared:

Grommet thermocouple

An easy fixing thermocouple mostly used in kinds of machines, ovens, engines where temperature range from 0 to 400℃. Grounded junction is suitable for fast reaction, thermocouple wires are welded with the pocket.The standard lead cable is 2x7/0.2mm(24AWG, stranded conductors)-fiberglass insulation- fiberglass jacket- stainless steel over braid. Accuracy Class I according to thermocouple standard IEC60584-2:1995

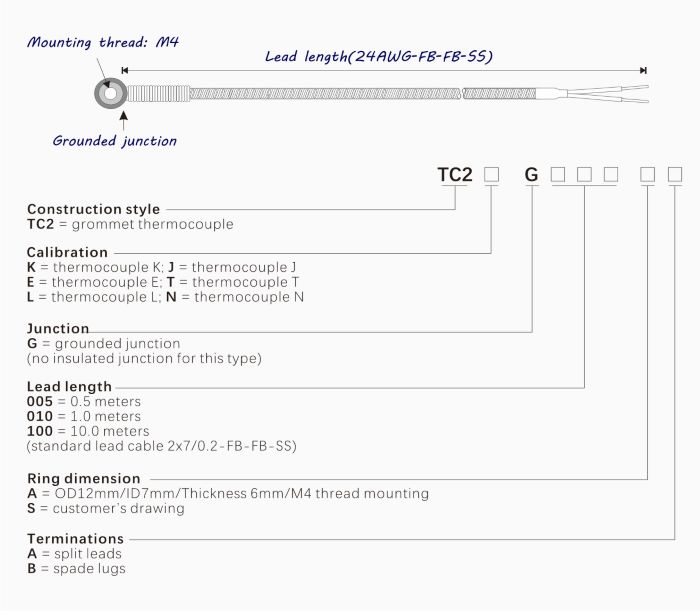

An example of order code
TC2 J G 010 A B
Grommet thermocouple type J
Grounded junction; Lead length 1 meter
Standard grommet dimension; Spade lugs end


Order code

** Tell us your grommet dimension supposed the standard one is not suitable for your application.
