TC10-Connector termination thermocouple

PRODUCTS > Thermocouple > TC10-Connector termination thermocouple

TC10-Connector termination thermocouple

shared:

Connector termination thermocouple  [ Mineral Insulated ]

Connector termination thermocouple which offers very quick connecting is widely used in all kinds of industrials where temperature range from 0 to 1000℃. Mineral insulated probe offers high accuracy measuring result as well as long lifetime. Our connectors are international standard dimensions, which can match all types. We offer almost all connectors which are popular in the market. Accuracy Class I according to thermocouple standard IEC60584-2:1995

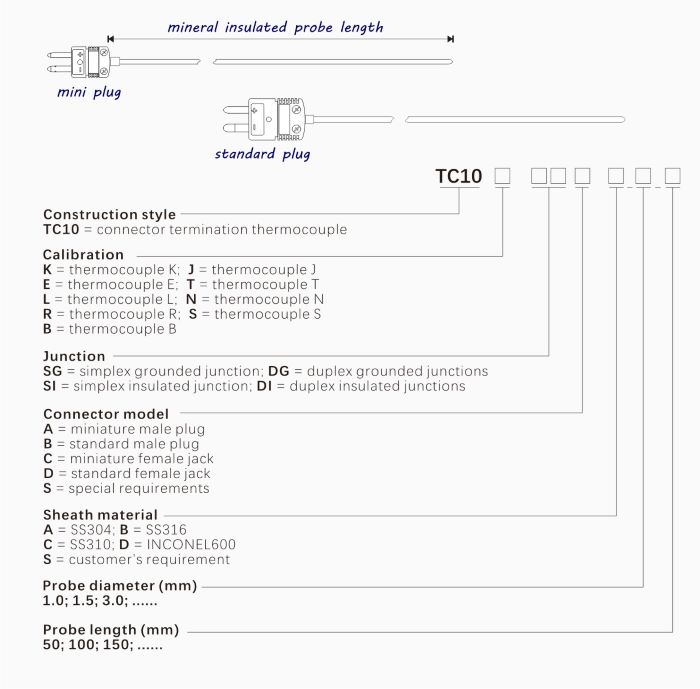

An example of order code
TC10 K SI A B 3.0-150
Mineral insulated connector termination thermocouple type K
Simplex insulated junction, miniature male plug termination,
Sheath material SS316, probe OD3.0 x length 150mm


Order code
